Wnmu040304 Milling Carbide Insert

Product Categories
Shenzhen Bwin Precision Tools Co., Ltd.
Contact Now

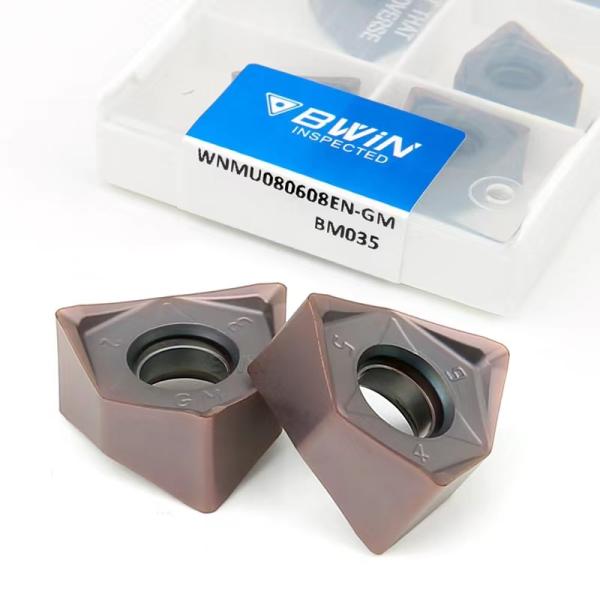

Wnmu040304 Milling Carbide Insert

  • 1
  • 2

Brand Name : BWIN

Model Number : Wnmu060408

Place of Origin : China

MOQ : 10pcs/box

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1-10000pcs 7days

Delivery Time : 7 work days

Packaging Details : Plastic box

Product name : Wnmu060408 Cnc Tungsten Carbide Inserts

Material : Tungsten Indexable Milling Cutter Blade

Workpiece : Cast iron/Steel/Stainless steel

Usage : Milling Cutting Tool

Color : Fuchsia/Black

Coating : PVD CVD

Hardness : HRC40-HRC60

Feature : High Rigidity

Application : Cnc Lathe Cutting Tool

Package : 10pcs/Box

Contact Now

Cnc Tungsten Carbide Inserts Wnmu040304 060408 080608 Indexable Milling Cutter Blade

Quick Detail:

  • Good wear resistance
  • Anti collapse
  • Strong compression forc
  • thermal shock
  • Oxidation resistance

Description:

  • WNMU tungsten carbide inserts adopts imported coating to ensure good stability of cutting edge. The double-sided groove design has 6 cutting edges, high edge strength, low cutting resistance, high temperature resistance, thermal shock resistance and oxidation resistance; Wide range of application, applicable to step surface processing, model profiling processing, grooving cutting, slope processing, etc.

Specifications:​

Brand BWIN
Model WNMU040304 WNMU060408 WNMU080608
Color Yellow/Brown/Fuchsia/Black/cermet/Uncoated
Workpiece Cast iron/Steel/Stainless steel
Type CNC Milling Cutting Tool
Material Milling Tungsten Carbide Inserts
Processing Type Medium Cutting
Feature Good wear resistance
Anti collapse
Strong compression forc
thermal shock

Oxidation resistance
Standard ISO
Quantity 10pcs/box
Weight 0.015kg
Package Plastic Box
Customized Support OEM, ODM

Lead Time:

antity(pieces) 1 - 3000 >3000
Lead time (days) 7 To be negotiated

Wnmu040304 Milling Carbide Insert

WN□□0804◯◯
I(mm)
s(mm)
ic(mm)
d1(mm)
8.7
4.76
12.7
5.16
WN□□0604◯◯
I(mm)
s(mm)
ic(mm)
d1(mm)
6.5
4.76
9.525
3.81

Notice:

  • The tungsten carbide inserts not be collided or dropped on the ground and must be handled with care.
  • Before installing the tungsten carbide inserts, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
  • After installation, it is necessary to confirm whether the central hole of the carbide blade is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
  • When using, do not exceed the specified high speed
  • When the tungsten carbide inserts are not used, hang the blade vertically on the dry shelf.

Applications:

Our tungsten carbide inserts could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

Wnmu040304 Milling Carbide Insert

FAQ
Q1. Can you give me a insert sample?
A: Yes, we welcome ordering samples to test and check the quality. Mixed samples are acceptable.
Q2. How about the delivery date?
A: Sample preparation lasts for 3-5 days and batch production lasts for 8-10 working days.
Q3. Does your company have a minimum order quantity limit for cemented carbide inserts?
A: The minimum order quantity is low, and one sample can be provided for inspection.
Q4. How do you ship the goods and how long will it take to arrive?
A: Ship via DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Air and sea transportation are also optional.
Q5. How to continue to order cemented carbide inserts?
A: First let us know your request or application.
Secondly, we will quote according to your requirements or suggestions.
Third, the customer confirms the sample and makes a deposit for the formal order.
Fourth, we arrange production.
Q6. Can I print my logo on cemented carbide insert products?
A: Yes. Please inform us formally before production.
